| Number of stitches ：3 4 5 8 12 |
| Locking method ：threaded/screw |

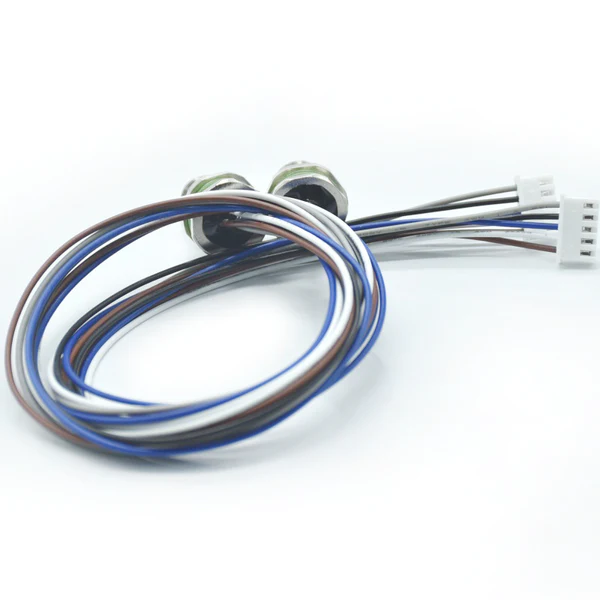

| Wiring method ：Assembled connecting wire |
| Link section ：014mm² (AWG26).0.25mm² (AWG24) |
| Protection class ：IP67 |
| Mechanical life ：>100 plugging cycles/mating cycles |
| Maximum working temperature ：~+80°c |
| Minimum operating temperature ：~-25°c |
| Rated voltage ：250V 250V 60V 30V |
| Pollution Degree ：3 |
| Overcurrent protection class ：Ⅱ |
| Insulation Group ：Ⅱ |
| Rated current (40°c) ：4A 4A 4A 2A 1A |
| Contact resistance ：≤3mΩ |
| Contact material ：CuZn (brass/brass) |
| Contact plating material： Au (gold/gold) |
| Socket material ：PA |
| Housing material ：CuZn (nickel-plated brass |
